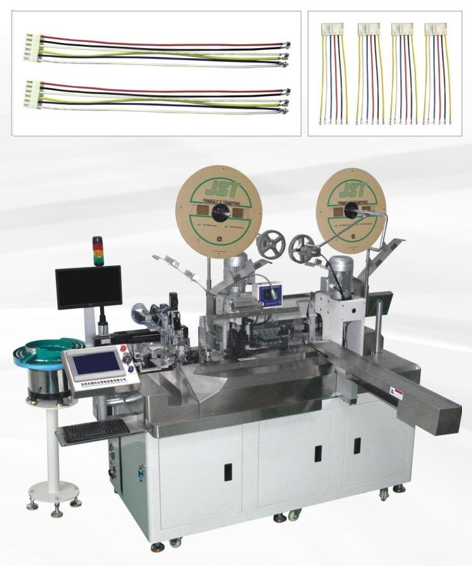

※ Utilizes the intelligent control system from Keyence of Japan, equipped with servo motors, providing precise, efficient and stable performance.

※ The adjustment is achieved through touchscreen touch control, including: wire length, stripping length, semi-stripping length, position of the plug-in plastic shell, depth of the plug-in plastic shell, and file storage, all of which can be completed in one step.

※ Utilizes advanced quality inspection system, terminal pressure management device, terminal insertion and extraction force detection, CCD visual system detection.

※ Utilizes advanced fault detection system, automatically detects low air pressure, motor abnormalities, belt abnormalities, etc. When an abnormality occurs, it can automatically stop and display the cause of the fault, facilitating and quickly resolving the fault.

※ The best features are simple adjustment, short adjustment time, and can significantly reduce machine adjustment time.

※ The touch screen allows for adjusting the terminal insertion position, making the terminal pressing more precise and stable.

※ It can quickly switch products in a short time.

Parameters

Power supply:AC220V 50/60Hz one phase

Pressure force:5-6 kgf (requires clean air)

Function:Cutting of wires, one side stripping, two sides stripping, one side crimping, two sides crimping, one side insertion into plastic housing

Wire color:Corresponding to 12 colors (same specifications)

Quality detection:Pressure management system, CCD terminal appearance inspection system, terminal insertion force inspection, terminal pull force inspection, presence of wires, wire connectors, presence of terminals, presence of sockets

Range of processable wires:AWG#30—AWG#18

Production Capacity:1800 pieces per hour (depending on the product)

Cutting length:45mm-3000mm

Cutting accuracy:1mm + cutting length × less than 0.1%

Gutter width:0-7mm

Pressing capacity:2.0T

Size:1900*920*1600(excluding protrusions)
