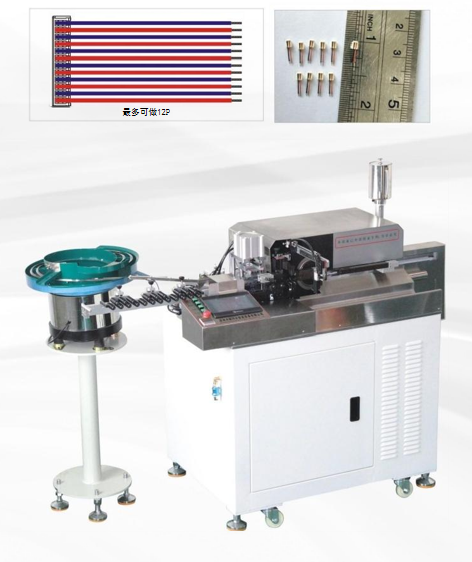

※ Equipped with the control system from Panasonic of Japan, servo motors, precise, efficient and stable.

※ Operated through touch screen for adjustment, including: wire length, stripping length, semi-stripping length, wire twisting tightness, wire twisting length, tinning length, etc., all can be completed in one click.

※ Utilizes computer-based automatic detection, such as low air pressure, abnormal motor, abnormal belt, etc., when an abnormality occurs, it can automatically stop and display the cause of the fault, facilitating and quickly resolving the fault.

※ The best feature is simple adjustment, short adjustment time, which can greatly reduce the machine adjustment time.

※ The touch screen allows for precise adjustment of the crimping position, making the terminal crimping more accurate and stable.

※ It can quickly switch products in a short time.

Parameters

Power supply:AC220V 50/60Hz(one phase)

Pressure force:5-6 kgf (requires clean air)

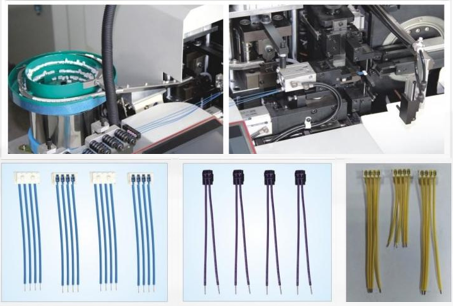

Function:Wire cutting, one side crimping, one side stripping, one side partial stripping, one side twisting, one side tin application

The spacing of the machinable plastic shells:1.5mm-2.54mm

Processing wire range:AWG#30-AWG#18

Production Capacity:4000 pieces per hour (depending on the product)

Cutting length:30mm-1500mm

Cutting accuracy:1mm + cutting length × less than 0.1%

Gutter width:0-7mm

Twist wire length:2mm-7mm

Length of tin coating:0.5mm-7mm

Size:1280*680*1300mm(excluding protrusions)
