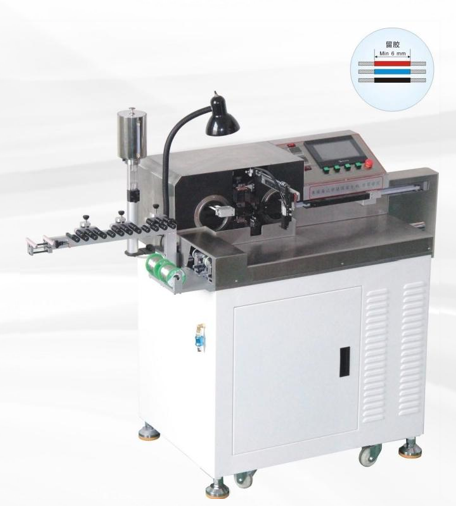

※ Utilizes the Japanese Panasonic control system and servo motors, providing precise, efficient and stable performance.

※ Features touch screen control for adjustments, including: wire length, stripping length, semi-stripping length, wire twisting tension, wire twisting length, soldering length, etc., all can be completed with one click.

※ Adopting advanced fault removal system, which can automatically detect low air pressure, abnormal motor operation, abnormal belt operation, etc. When an abnormality occurs, it can automatically stop the machine and display the cause of the fault, making it convenient and quick to troubleshoot.

※ The best feature is simple adjustment, short adjustment time, which can significantly reduce the machine adjustment time.

Power supply:AC220V 50/60Hz one phase

Pressure force:5-6 kgf (requires clean air)

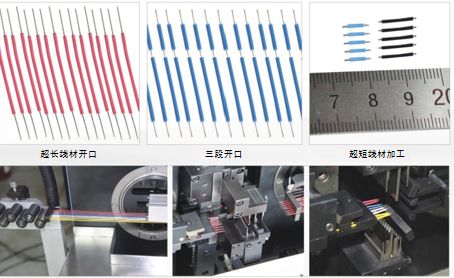

Function:Wire cutting, one side stripping, two sides stripping, one side partial stripping, two sides partial stripping, one side twisting, two sides twisting, one side tin coating, two sides tin coating

Range of processable wires:AWG#32—AWG#20

Production Capacity:12,000 pieces per hour (depending on the product)

Cutting length:8mm - 3500mm (The processing length can be customized according to customer requirements)

Cutting accuracy:1mm + cutting length × less than 0.1%

Gutter width:0mm-6mm

Twist wire length:3mm-6mm

Length of tin coating:0.5-6mm

Size:1050*610*1120mm(excluding protrusions)
